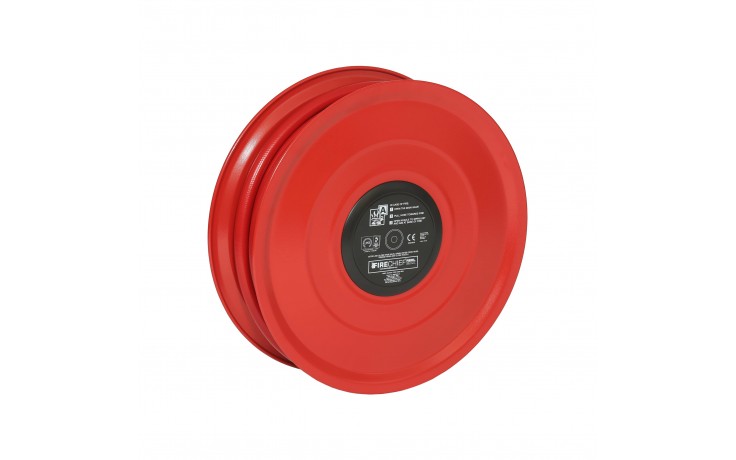

25mm Swinging automatic hose reel c/w hose, nozzle & fittings

Product Information

This Firechief 25mm hose reel is a swinging reel meaning that the reel is fixed to a hinge allowing it to swing out when in use. It is an automatic hose reel meaning that the water supply is activated automatically when the hose is pulled. All Firechief hose reels are high quality constructed using powder coated steel and brass. They come complete with fire hose ready fitted.

  • Quality construction using powder coated steel and brass
  • Supplied ‘hose-on’ and ready to install 25mm x 30m hose supplied as standard, other sizes available on request
  • Supplied with jet/spray nozzle, hose guide (fixed models) and gate valve (manually operated models)
  • Certified to EN671-1 LPCB approval
  • 2 year guarantee
  • Inlet pipe made of rubber fire hose
  • Swinging hose reels come with flexible water inlet pipe
  • Designed for emergency use

Request a Quote


Model Number RMSA25-B
Product Code 102-1078
LPCB Cert No. 1093d/01
Diameter (mm) 600mm
Total Width (mm) 150-180mm
Working pressure (bar) 15
Inlet Stop Valve size (mm) N/A
Reel Diameter (mm) 550
Total Height (mm) 620
Total Weight 36
Hose Internal Diameter (mm) 25
Hose Length (m) 30
Reel Working Pressure (bar) 15
Hydrostatic test to (bar) 18
Hose Working Pressure (bar) 15
Hose Burst Pressure (bar) 50
Download Product Sheet
Download Manual
Download Installation note
